10M Telescopic Camera Pole Pro Model

for Roof Surveys and Aerial Photograph

10M Telescopic Camera Pole for Roof Surveys and Aerial Photography with a Drone.

The pro pole offers a more robust and finished design and has been tested in the field.
One of our customers advised they have continued to use the pole several times daily over the course of 12 months and it is still going strong.

The Pole

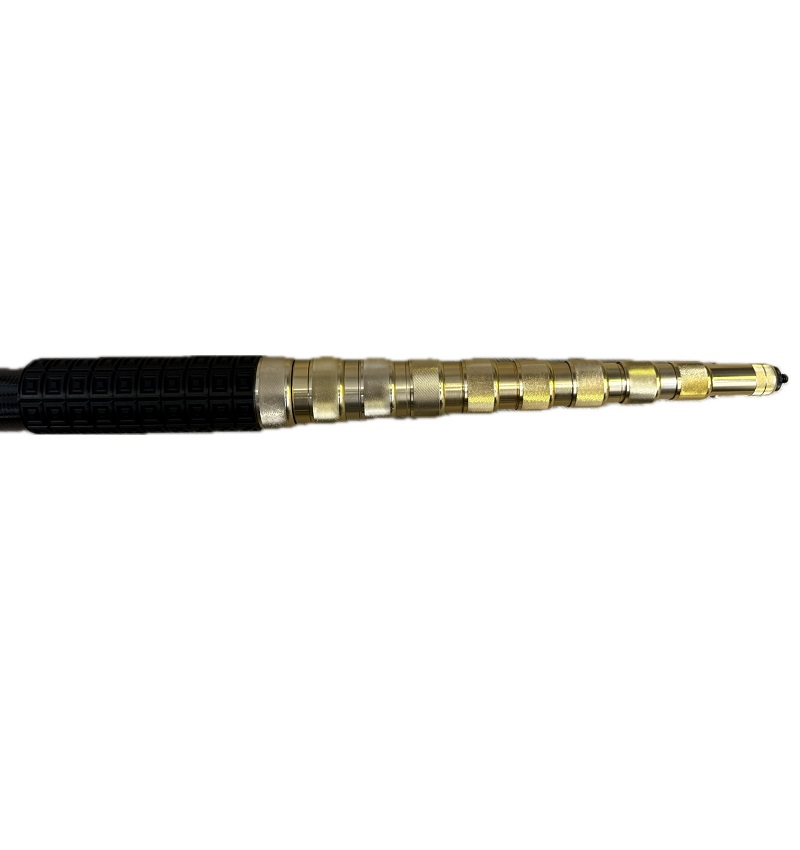

Our pro pole has a broader barrel width, durable gloss finish and is constructed from high grade fibreglass offering extra rigidity to the pole over our standard 10m pole when extended to maximum reach.
10 stage telescopic elevated camera pole
Each stage is approx 1.0-1.1 meters long
Simply extend each section, pull and twist to lock in place until you reach the desired height.
Stowed height 116cm
Tallest height approx 10m
Removable rubber top cap to keep the sections together whilst in transit / storage
Broad rubber foot to aid grip / access poles for cleaning if required

The mount

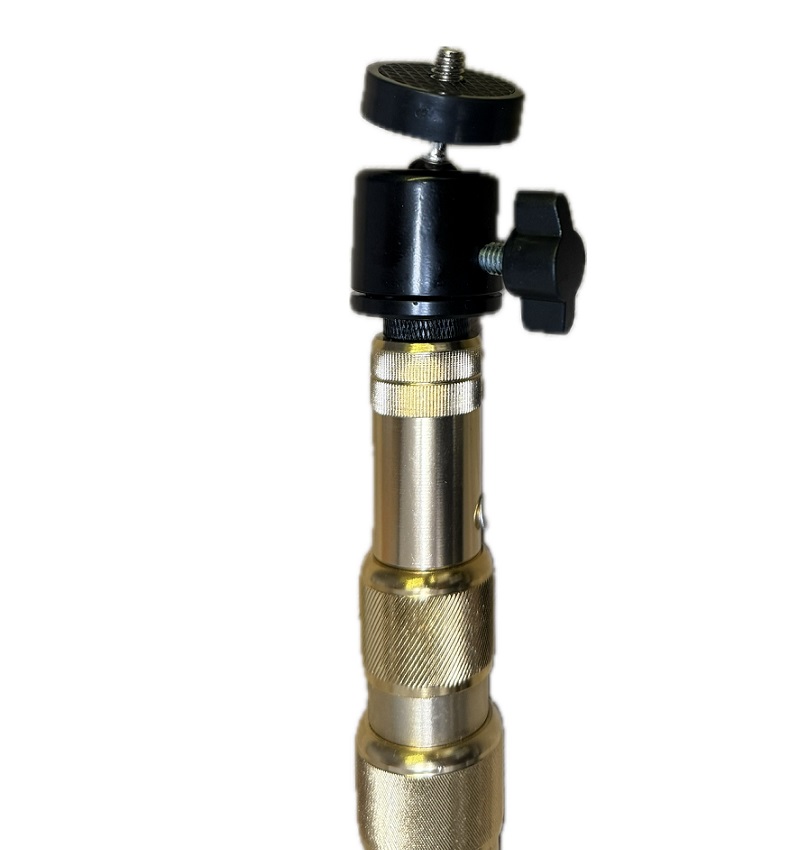

The top section of the pole has a socket that is threaded to 1/4 unc
We include a swivel mount with a male / female thread
Our suggested mount arrangement is shown in the gallery images
Additional mounts can be sourced / provided on request

Suggested use / recommended cameras
Aerial photography, weddings, etc
Surveying, roofing, etc – quick and simple to gain images without having to access roofs, etc.
Adds credibility to your quotes and lets your customers see roof / chimney damage, etc.

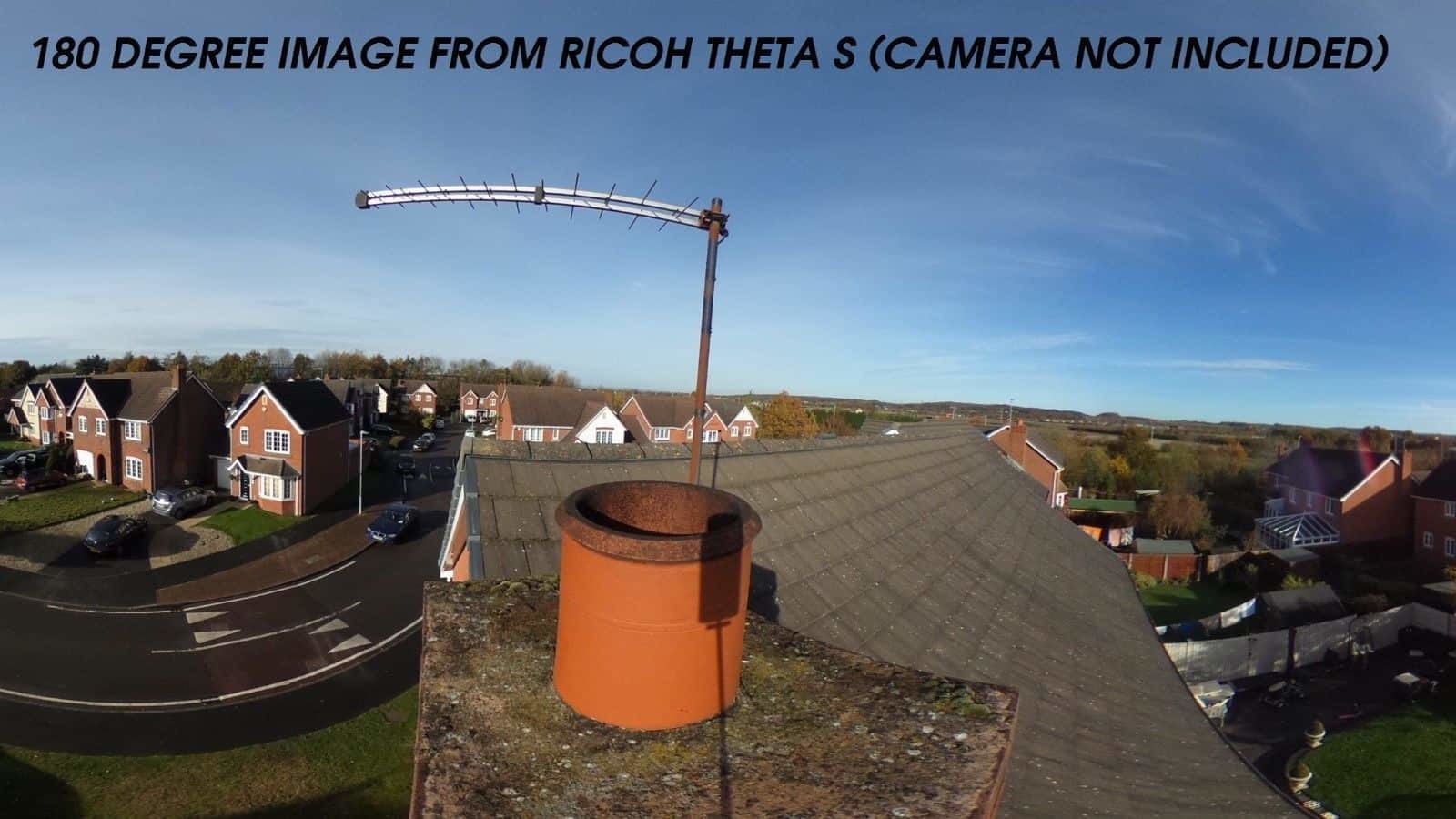

Ideal for use with lightweight cameras such as the sony qx10, qx100, qx30 and the richoh theta s
(cameras not included but can be quoted / listed if required)
A lanyard is recommended for additional saftey / security.

Health and safety
Users min height should ideally be 5ft 6inches
Max wind speed rating 18 mph / force 4
The user should check the mount and any attached equipment is fully secured and familiarise themselves and remain conscious of their surrounding before erecting the pole.
Additional care should be take to avoid overhead cables, oncoming traffic, pedestrians etc.
The foot of the pole should be firmly placed on the ground and stabilised between the users legs / feet

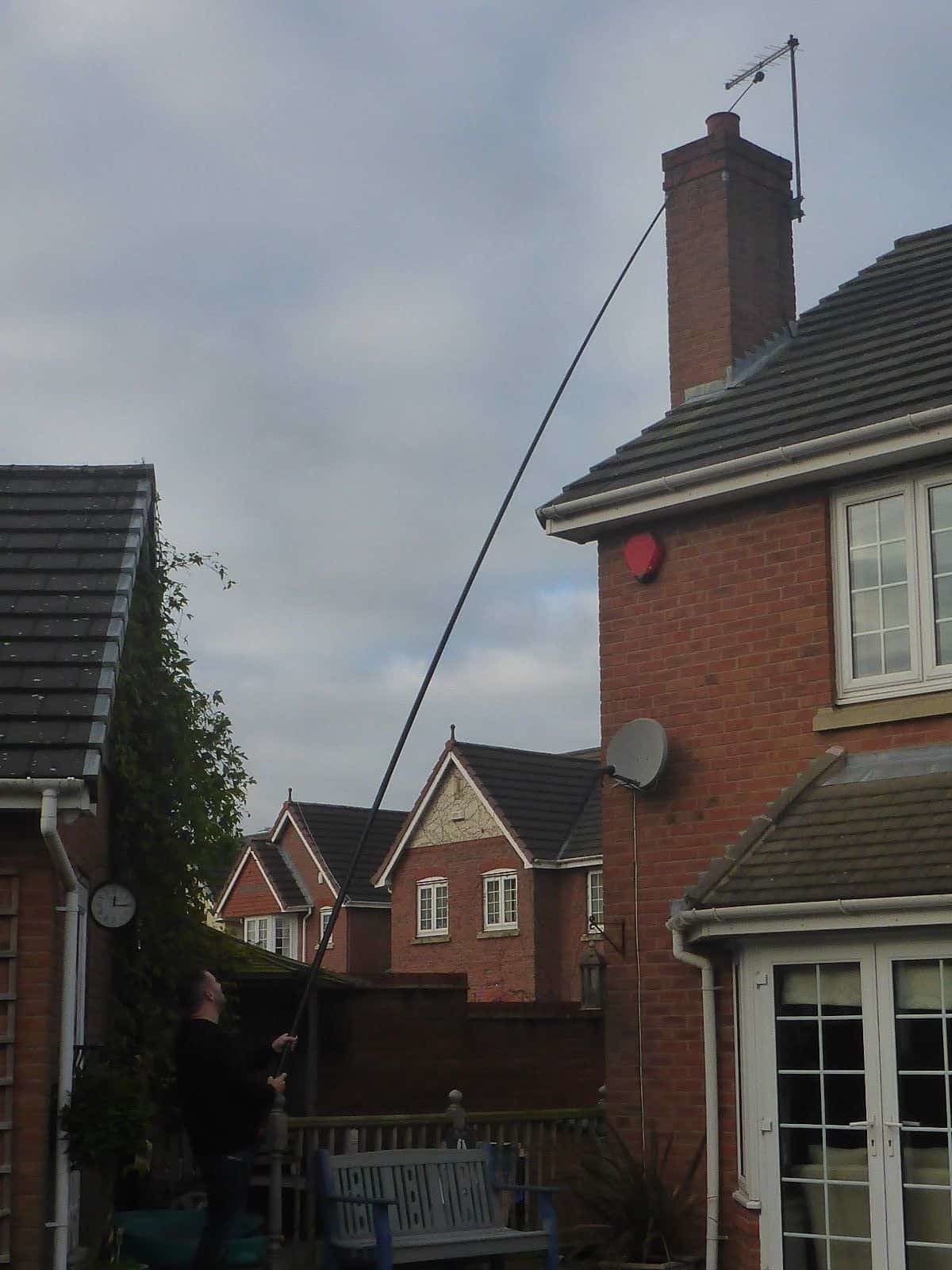

The pole can be angled as shown but should be firmly placed between the users feet
Although the mounts we use are secure, we strongly recommend the use of lanyards for additional security / safety.

The above guidelines are to help you use the pole safely.
Infraready will accept no liability relating to the use of this product.
The buyer / user accepts full responsibility for the safe use of the pole and the equipment mounted to it.
Shorter, more compact poles from 3 -9 meters are available to list on request. 10-14 lead time applies.
